Product Details:
|
| Ceramic Seal Rings: | 0.3-200mm / Customized | High: | 0.4-400mm / Customzied |
|---|---|---|---|
| Flexural Strength: | 1250 MPa | Advantage: | Long Working Life |
| Item: | Wear Resistance Precision Mechanical Zirconia Seal Ring | Density: | 6.0g/cm3 |
| Bibulous Rate: | <0.01% | Surface: | Pulishing |
| Heat Expansion Rate (10-6K-1): | 10 | Color: | Black,yellow,white |
| High Light: | 400C zirconia Seal Ring,1300HV ceramic electrical insulators,1300HV ceramic electrical insulators |
||

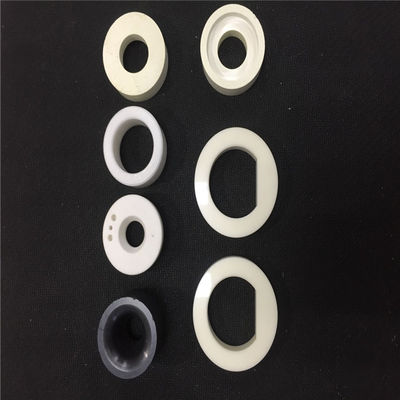

Customized polishing Zro2 zirconia ceramic sealing ring for industry sealing
Description:
1 Supplying samples ahead for reference.
2. Various sizes in stock!!
3. Best delivery time.
4. Competitive price.
5.. Professional service.
6. High quality with QC attached each parcel.
7. ZrO2: 95%.
8. Raw material from China,Germany, Japan.
Principal characteristic of Zirconia Ceramic Seal Rings:
1. High density.
2. High fracture toughness.
3. High hardness High Mechanical Strength.
4. Low thermal conductivity Excellent insulation.
5. Good Wear resistance.
6. Resistant to Corrosion and Chemical Attack.
7. Extreme Temperature Stability.
8. Outstanding Electrical and Electronic Properties.
Application of Zirconia Ceramic Seal Rings:
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields.
Technical Parameters:
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| HV Hardness | Kg/mm2 | >1300 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
| Name: | Wear Resistance Precision Mechanical zirconia Seal Ring | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Advantages:
1).Excellent electrical insulation
2).High hardness
3).Relatively low strength and fracture toughness
4).Resistance to wear and corrosive
5).Excellent thermal stability
6).Resistance to high temperatures
7).High electrical resistivity
8).Good chemical stability and resistance
9).High corrosion resistance
10).Excellent thermal shock resistance
11).High thermal insulation
Application:
Electronical Vacuum decices, Cruibles, Insulation plates, Capacitors, Spaceflights, Traffic, Weave, Petro Chemical, Mine, Pharmaceutical Engineering, Communication Engineering and Archtectural, etc.
More Picture:
Packaging:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
