Product Details:
|
| Height Range: | 1-200mm / Customized | Diameter Range: | 1-400mm / Customzied |
|---|---|---|---|
| Flexural Strength: | 1250 MPa | Advantage: | Long Working Life |
| Item: | High-purity Yttria Stabilized Zirconia Ceramic Tube | Density: | 6.0g/cm3 |
| Bibulous Rate: | <0.01% | Surface: | Smooth |
| Heat Expansion Rate (10-6K-1): | 10 | Color: | Black,yellow,white |
| High Light: | 1300HV Yttria Stabilized Tube,6.0g/cm3 Yttria Stabilized Tube,6.0g/cm3 Ceramic Tube |
||

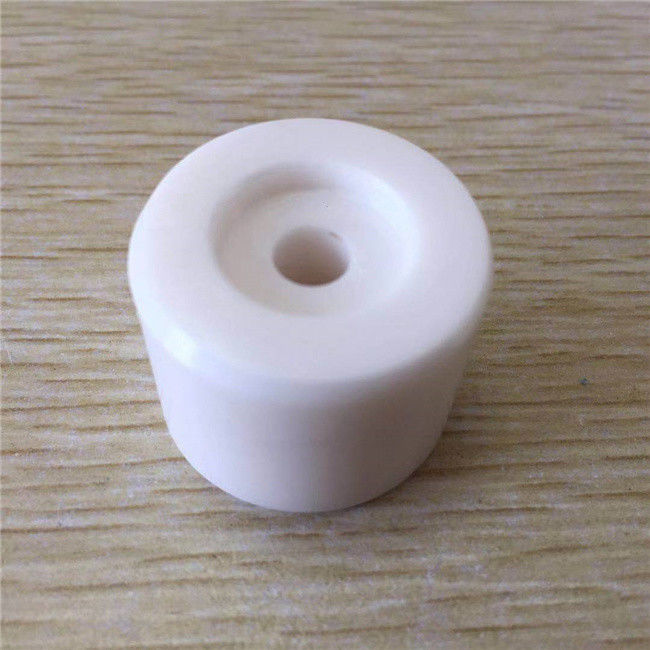

High-purity Yttria Stabilized Zirconia Ceramic Tube
Description:
Zirconia Ceramic not only have good feature of high hardness and high wear resistance,but also is excellent in toughness among fine ceramic material, so it's commomly used for structural parts and wear parts. As thermal expansion coefficient is close to the steel, it is also used to connecte ceramic and steel. Expect coommonly used in the field of industrial structural parts, Zirconia Ceramic is also widely used in daily-used ceramic because of its jade-like texture.
Technical Parameters:
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
| Name: | High-purity Yttria Stabilized Zirconia Ceramic Tube | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Principal characteristic:
1.Outstanding wear resistance, over 276 times in comparison with traditional stainless steel.
2.Great mechanical properties, with diamond-like hardness, excellent compressive and dense body.
3. Exceptional corrosion resistance, it can withstand various strong acid and alkali, like HF, H2SO4.
4. Extraordinary electrical insulation, it always used in various high voltage, high-current application.
Application :
1.Precision ball valve (balls and seats).
2.Pump seals, valves and impellors.
3.High density grinding media.
4.Oxygen sensors.
5.Threadguides.
6.Fuel cell membranes.
7.Cutting blades.
8.Radio frequency heating susceptors.
9.Medical prostheses.
10.Metrology components.
More pictures:
Packaging:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us
