Product Details:
|
| Name: | CNC Lathe Machined Precision Alumina Ceramic Rod | Material: | Alumina Ceramic |
|---|---|---|---|
| Application: | Industrial Ceramic | Packaging Details: | Box, Carton, Wooden, Bag Etc. Customized Package |
| Length: | 3mm ~ 2000mm | Water Absorption: | 0% |
| Electrical Insulation: | Excellent | Density: | 3.9g/cm3 |

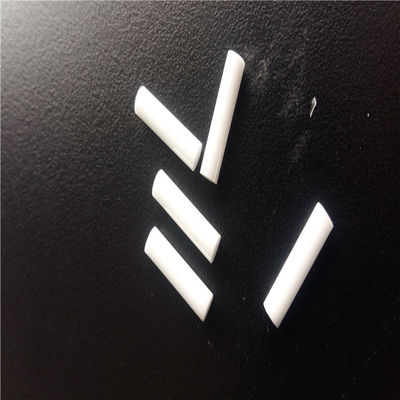

CNC lathe machined precision alumina ceramic rod
Description:
Alumina ceramics are ceramic materials based on alumina (Al2O3) for thick film integrated circuits. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required. Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.Excellent insulation.
2.High Mechanical Strength.
3.Outstanding Electrical and Electronic Properties.
4.Wear Resistance.
5.Extreme Temperature Stability.
6.Resistant to Corrosion and Chemical Attack.
Application:
1.Gas laser tubes.
2. Electronic substrates.
3.Seal rings.
4. High temperature electrical insulators.
5. High voltage insulators.
6.Thermometry sensors.
Why Choose Us?
1.5 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service.
More picture:
Packaging:
