Product Details:
|
| Name: | Polished Rectangle Or Round Alumina Ceramic Plate | Material: | Alumina Ceramic |
|---|---|---|---|
| Application: | Industrial Ceramic | Packaging Details: | Box, Carton, Wooden, Bag Etc. Customized Package |
| Length: | 3mm ~ 2000mm | Water Absorption: | 0% |
| Electrical Insulation: | Excellent | Density: | 3.9g/cm3 |
| High Light: | 3.9g/cm3 Alumina Ceramic Parts,3.9g/cm3 al2o3 plate,2000mm al2o3 plate |
||

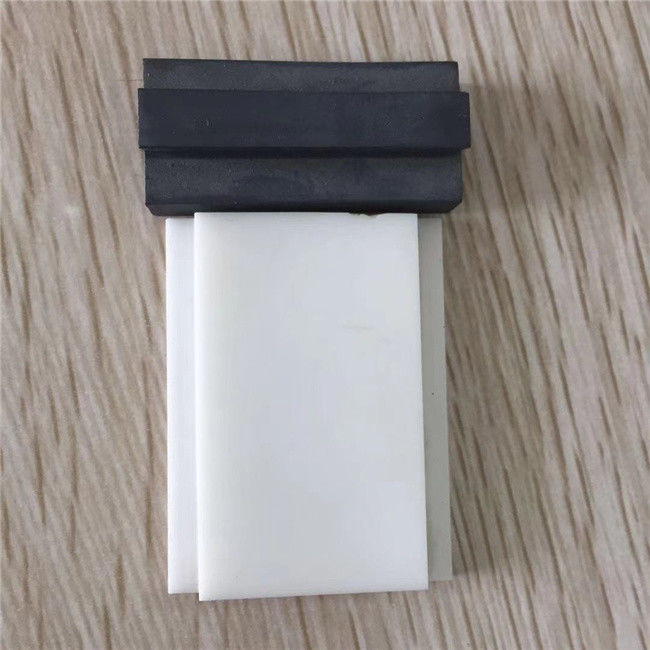

Polished Rectangle or Round Alumina Ceramic Plate
Description:
Alumina ceramic plates are formed by tape casting, dry pressed or Isostatic pressed and sintered under high temperature to be a strong and dense ceramic part. We can produce different grades of materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies.
We manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic disc, ceramic rod, ceramic arms, ceramic wire guides. Whatever, its a prototyping case, or high volume demand, we believe we are able to provide you a desirable solution.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1. High hardness.
2. Superior abrasion.
3. Corrosion and chemical resistance.
4. Light weight.
More pictures:
