Product Details:
|
| Product Name: | Different Sizes Wear Resistance High Purity Alumina Ceramic Plate | Material: | Alumina Ceramic |
|---|---|---|---|
| Application: | Industrial Ceramic | Packaging Details: | Box, Carton, Wooden, Bag Etc. Customized Package |
| Length: | 3mm ~ 2000mm | Water Absorption: | 0% |
| Electrical Insulation: | Excellent | Density: | 3.9g/cm3 |
| High Light: | 3.9g/cm3 Alumina Ceramic Plate,3.9g/cm3 alumina plate,1800C Alumina Ceramic Plate |
||

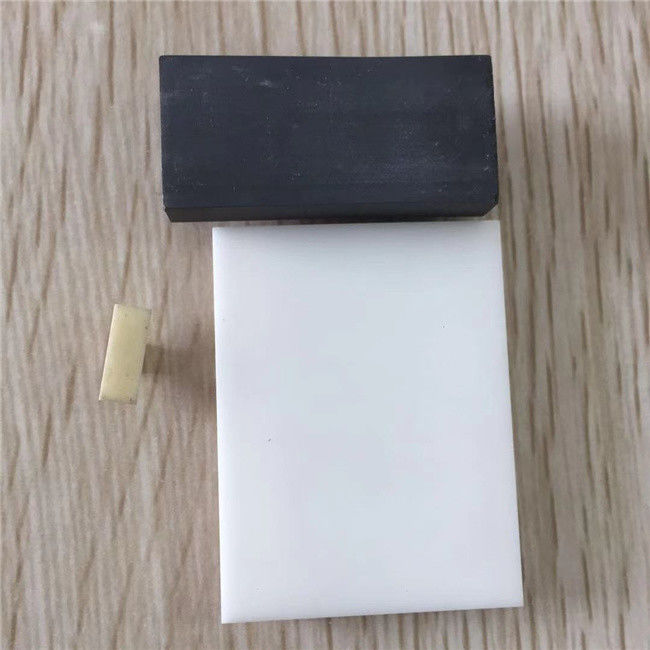

Different Sizes Wear Resistance High Purity Alumina Ceramic Plate
Description:
1. Withstand high temperature: with high melting point, high boiling point characteristics, can be used under high temperature is not affected.
2. Not easy to corrode: not affected under strong acid, strong alkali, inorganic and organic salt conditions.
3. Antimagnetic: Because the product material is non-magnetic, it does not absorb dust, which can reduce surface peeling.
4. Electrical insulation: it is an insulator at room temperature with high resistivity, which can be used in equipment requiring insulation.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.High Mechanical Strength
2.High Thermal Conductivity
3.High Spalling Resistance
4.High Softening Temperature
5.Excellent Insulativity
6.Etching Resistance
Application:
1.Alumina plates are hard enough to become armor for personnel or vehicles.
2.The corrosion resistivity of alumina plates makes them a great material for the chemical industry.
3.Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures.
