Product Details:
|
| Ceramic Seal Rings: | 0.3-200mm / Customized | High: | 0.4-400mm / Customzied |
|---|---|---|---|
| Flexural Strength: | 1250 MPa | Advantage: | Long Working Life |
| Item: | Ceramic Seal Rings High Hardness And Heat Resistance Zirconia Seal Ring | Density: | 6.0g/cm3 |
| Bibulous Rate: | <0.01% | Surface: | Pulishing |
| Heat Expansion Rate (10-6K-1): | 10 | Color: | Black,yellow,white |
| High Light: | Ceramic Seal Rings High Hardness,Heat Resistant Zirconia Seal Ring,1250 MPa Ceramic Seal Rings |
||

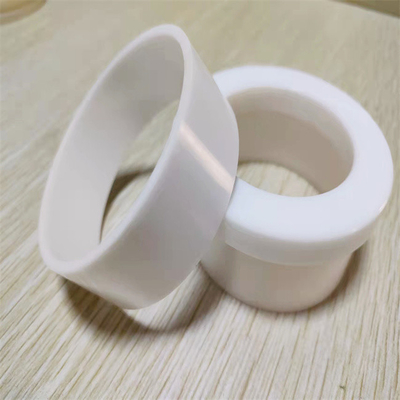

Ceramic Seal Rings High hardness and Heat Resistance Zirconia Seal Ring
Description:
Our ceramic sealing ring are available in various dimensions, these ceramic rings can also be customized as per the requirements of customer. Recognized for high resilience, abrasion resistance, good impact resistance and high durability, mechanical etc.
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic sheet,plates,block or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
Principal characteristic of Zirconia Ceramic Seal Rings:
1. High density
2. High fracture toughness
3. High hardness High Mechanical Strength
4. Low thermal conductivity Excellent insulation
5. Good Wear resistance
6. Resistant to Corrosion and Chemical Attack
7. Extreme Temperature Stability
8. Outstanding Electrical and Electronic Properties
Application of Zirconia Ceramic Seal Rings:
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields
Technical Parameters:
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| HV Hardness | Kg/mm2 | >1300 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 10 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
| Name: | High precision Mechanical Seal Zirconia Zro2 Ceramic Ring | Surface: | Polishing |
| Dimension: | According Your Request | Technology: | Machining |
| Material: | Zirconia Ceramic | MOQ: | 5PCS |
| Size: | Customized | Shipping: | DHL EMS UPS FEDEX TNT |
| Item: | Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines | OEM: | Yes And welcome |
Advantages:
1). Excellent electrical insulation
2). High hardness
3). Relatively low strength and fracture toughness
4). Resistance to wear and corrosive
5). Excellent thermal stability
6). Resistance to high temperatures
7). High electrical resistivity
8). Good chemical stability and resistance
9). High corrosion resistance
10). Excellent thermal shock resistance
11). High thermal insulation
Application:
Electronical Vacuum decices, Cruibles, Insulation plates, Capacitors, Spaceflights, Traffic, Weave, Petro Chemical, Mine, Pharmaceutical Engineering, Communication Engineering and Archtectural, etc.
More Picture:
Packaging:
Why Choose Us?
1. 5 years of professional production industrial ceramics factory
2. High quality products with low price
3. High precision parts with lowest tolerance
4. Short time for production
5. Has a group of experienced, professional and efficient R&D team
6. Has a good reputation in China and abroad.
7. MOQ is not limited, small quantity is welcome.
8. Vigorous team and good after-sales service
