Product Details:
|
| Width Range: | 1-200mm / Customized | Length Range:: | 1-200mm / Customzied |
|---|---|---|---|
| Thickness Range: | 0.5-20mm / Customzied | Advantage: | Long Working Life |
| Item: | Diamond Polished Yttria Stabilized Zirconia Ceramic Plate | Density: | 6.0g/cm3 |
| Bibulous Rate: | <0.01% | Surface: | Smooth |
| Heat Expansion Rate (10-6K-1): | 10 | Color: | White, Yellow |

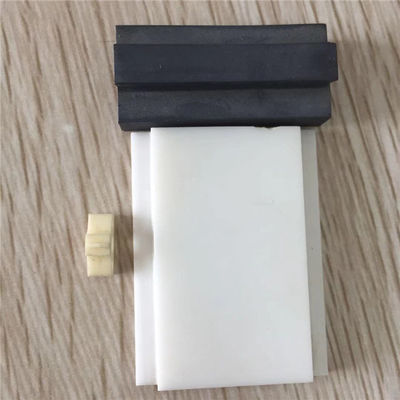

Diamond Polished Yttria Stabilized Zirconia Ceramic plate
Description:
This much studied ceramic is only useful in its stabilized state, as unstabilized material has a tendency to crack due to phase changes induced by changes of temperature. However, zirconia partially stabilized with yttria has excellent mechanical properties at high temperatures and is relatively inert to hostile environments. The ability to retain high strength at elevated temperatures and resist a range of molten metals makes it ideal for use as a ceramic plate.
Technical Parameters
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
Principal characteristic
1.A variety of specifications available.
2.Satisfy various technical request.
3.Lower medium spoilage.
4.Good insulation performance.
5.High strength.
6.Wear resistant performance.
7.High density.
8.refractory and high temperature resistance.
9. Customizable specifications.
Application:
1.Semiconductor manufacturing equipment parts.
2.LCD manufacturing equipment parts.
3.Vacuum equipment parts.
4.Analyzer parts.
5.Insulation parts.
More pictures:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us
