Product Details:
|
| Inner Diameter: | 210mm / Customized | Outer Diameter: | 242mm / Customzied |
|---|---|---|---|
| Height: | 120mm | Advantage: | Long Working Life |
| Item: | Zirconia Ceramic Hierarchical Wheel Used For For Classifying Equipments | Density: | 6.0g/cm3 |
| Bibulous Rate: | <0.01% | Surface: | Smooth |
| Heat Expansion Rate (10-6K-1): | 10 | Color: | White |
| High Light: | Zirconia Ceramic Hierarchical Wheel,Hierarchical Wheel Zirconia Ceramic Parts,Classifying Equipments Zirconia Ceramic Parts |
||

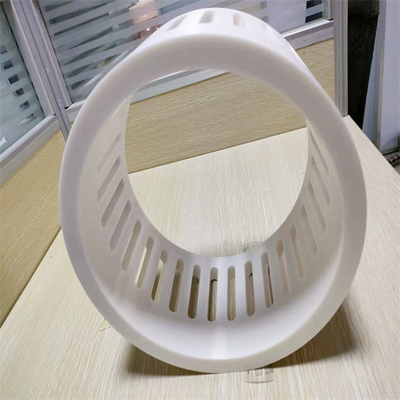

Zirconia Ceramic hierarchical wheel used for for classifying equipments
Description:
Classification wheel usually has two kinds of metal and ceramic, for some materials sensitive to magnetic pollution must use ceramic classification wheel, and in the current market, most choose zirconia ceramic classification wheel.
Zirconia Ceramic hierarchical wheel have the advantages of super hardness, high wear-resisting, good corrosion resistance, high temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface and so on.
Principal characteristic :
1. High density.
2. High fracture toughness .
3. High hardness High Mechanical Strength.
4. Low thermal conductivity Excellent insulation .
5. Good Wear resistance.
6. Resistant to Corrosion and Chemical Attack.
7. Extreme Temperature Stability.
8. Outstanding Electrical and Electronic Properties.
Application of Zirconia Tube Oxygen Sensor Size Customized Structural Ceramic Components:
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields.
Technical Parameters:
| Items | unit | Typical Values |
| Composition | (wt%) | 94.8%ZrO2+5.2%Y2O3(wt%) |
| Color | - | White |
| Density | g/cm3 | 6.03 |
| Water absorption | ％ | 0 |
| flexure strength | MPa | 1250 |
| HV hardness | GPa | 1300 |
| Modulus of Elasticity | GPa | 210 |
| Poisson's ratio | - | 0.31 |
| fracture toughness | MPa m1/2 | 8-10 |
| thermal expansivity | [normal temperature～400℃] x10-6 | 10.3 |
| Thermal conductivity | W/(m.K) | 3 |
| nitric acid(90%) | weight loss | 0 |
| sulfuric acid(95%) | 0.03 | |
| sodium hydroxide(30%) | 0.07 |
|
Performance |
Unit |
Typical value |
|
Density |
g/cm3 |
>6.0 |
|
HV Hardness |
Kg/mm2 |
>1300 |
|
Compressive Strength |
MPa |
5500 |
|
Flexural Strength |
MPa |
1250 |
|
Modulus of Elasticity |
Gpa |
200 |
|
Thermal Conductivity |
W/(m.k) |
3(20-400℃) |
|
Thermal Expansivity Cofficient |
10^-6K^-1 |
10 |
|
Facture Toughness |
Mpa.m0.5 |
8 |
|
Grain Size |
um | 0.5 |
More Pictures:
Packaging:
Why Choose Us?
1. 5 years of professional production industrial ceramics factory
2. High quality products with low price
3. High precision parts with lowest tolerance
4. Short time for production
5. Has a group of experienced, professional and efficient R&D team
6. Has a good reputation in China and abroad.
7. MOQ is not limited, small quantity is welcome.
8. Vigorous team and good after-sales service
